Passenger Pegs	Buddy Pegs
Temporary Use Pegs - Swing Arm Type	Temporary Use Pegs - Swing Arm Type
Bolt On - Clamp On Kit Page 1	Bolt On - Clamp On Kit Page 1

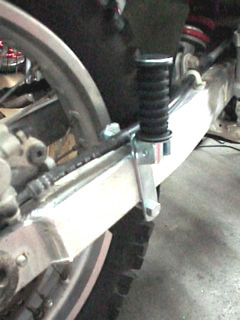

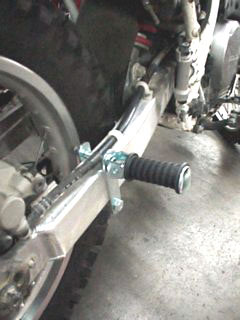

Passenger/Buddy Pegs Temporary Use Pegs - Swing Arm Type " Bolt On - Clamp On Kit " Complete Kit. Mounted On Bike Right Side Folded Down. Honda XR	Passenger/Buddy Pegs Temporary Use Pegs - Swing Arm Type " Bolt On - Clamp On Kit " Complete Kit. Mounted On Bike Right Side Folded Up. Honda XR

"Note Chain Placement"	"Note Brake Line Placement"

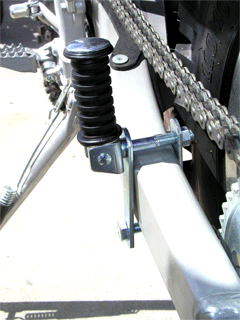

Passenger/Buddy Pegs Temporary Use Pegs - Swing Arm Type " Bolt On - Clamp On Kit " Complete Kit. Mounted On Bike Left Side Folded Up Yamaha WR	Passenger/Buddy Pegs Temporary Use Pegs - Swing Arm Type " Bolt On - Clamp On Kit " Complete Kit. Mounted On Bike Right Side Folded Up. Yamaha WR
Part #44-0030	Part #44-0030
MSRP Price $29.95 Price $24.95	MSRP Price $29.95 Price $24.95
Temporary Use Pegs Passenger /Buddy Peg Bolt On - Clamp On Kit Includes: 1 Left & 1 right side passenger/buddy peg clamp on footpeg & mounting brackets (pair) that fold down. - Check Dim Of Your Swing Arm -
Fitment Applications:
Honda XL, SL, CR, CRF, XR & XRL - 50, 70, 80, 90, 100, 125, 150, 185, 200, 230, 250, 350, 400, 450, 500, 600 & 650. 1965- 2008
Kawasaki KE, KD, KX & KLX 110, 125, 140, 250, 300, 400, 450, 500 & 650. 1965-2008
Suzuki RMZ, RM, RMX, DR & SP - 50, 70, 110, 125, 250, 350, 400, 450 & 650.1965-2008
Yamaha YZ, WR, XT, TTR & TT - 50, 110, 125, 225, 250, 500, 400, 426, 450 & 600 1979-2008
*Fitment On A Honda CRF 450X 2005-2008 - the swing arm is thick/large - it is a real tight squeeze!*
*Fitment On A Honda CRF 250X 2004-2008 - the swing arm is thick/large - it is a real tight squeeze!*

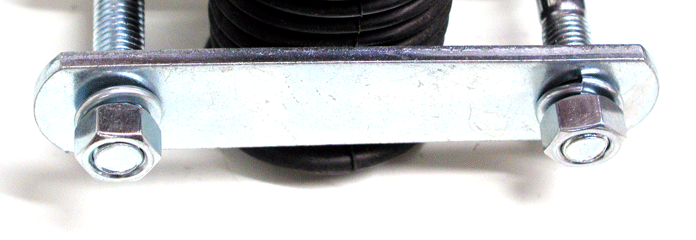

6 full threads
this is how it should look on your bike

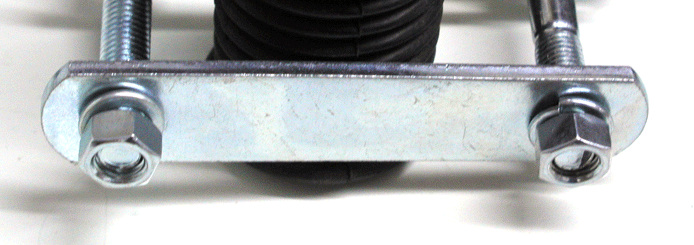

less than 6 threads
( you might remove the lock washer and or use a skinny nut and last but not least apply some thread lock ) If you want to use these on your X it is your choice!
All other bikes with swing arm dimensions of not larger than 76.21mm or 3.000" X 36.00mm or 1.417"
DIMENSION OF PEGS
Height -Top 2 Bottom Of Swing Arm - 76.21mm or 3.000"
Width - Side 2 Side Of Swing Arm - 36.00mm or 1.417"
You might be able to get a little more space 1-4mm extra with a different nut on the end of the bolts and use some lock tight and drop the lock washer!!
Put your girlfriend, son, daughter, wife, husband! or buddy on the back of your motorcycle and take them for a cruise through the woods or anywhere you want. The pegs unbolt in seconds when you don't need them, and make carrying a passenger safe. Installation is simple and quick. Product description: Passenger Buddy peg clamp bolt on kit attachs to the swing arms. Each kit includes in it two foot pegs and brackets for clamping on your motorbikes swingarm. Easy to install includes metric hardware. Quick installation. Go to 2nd page of Bolt On - Clamp On "Swing Arm" Passenger/Buddy Pegs

To Purchase Product

Click Above

WE DO NOT OFFER ONLINE ORDERING

or

4 ORDERING INFORMATION SEE LINK ABOVE

* Most Headlights & Some Taillights are no longer sold each (ala carte)
Package sales only, but there are exceptions.
IE: example headlight, taillight, stator and 12v ac regulatror.
When ordering ask about this option.

* NSP - Special Order
NSP* = Non Stocking Part/Product
NSP* = a special order part/product that is non returnable and may require a prepaid in full payment.

* Minimum Order Required $20 USD
** = Does not apply to products distributed and manufactured by ahmaclaughlins four strokes only
